Drapery/Curtains Measuring

Updated

Measuring for Your Drapery

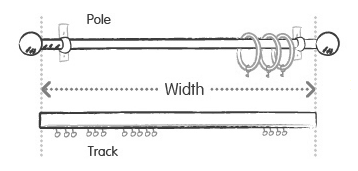

Rod or Track Width.png

  • Width Measurement

    1. If you already have a drapery rod: Measure the distance between the finials (the decorative ends of the rod).
    2. If you already have a track: Measure the total length of the track.
    3. If you don’t have a rod or track: Determine the total width you’d like your drapery to cover.
      • Measure the width of your window, including the frame or trim (if applicable).
      • Add 4”-8” to each side of your window measurement. Want to create the effect of a wider window? Feel free to add even more allowance!

    Why add extra width?

    • Your curtains can open fully without blocking much of the glass, letting in more light.
    • It creates the illusion of a larger window.
    • Extra width extends drapery coverage, helping to block out more light when closed.



  • Height Measurement

    1. If your drapery rod isn’t installed yet, decide where you want it placed.
    2. Position the rod 4” to 12” above the top of the window (not including tabs or rings) to create a professional look and give the illusion of taller ceilings.
    3. Measure from your chosen rod placement to where you’d like the drapery to end.

    Important: Pleats and grommets are already factored into the drapery length you provide.

    Measuring Tips for Different Drapery Styles

    Pleated Drapery

    1. Using metal clip rings? Adjust your panel length:
      • Eyelet + clip adds 3" of length. Deduct 3" from the panel length.
      • Eyelet only adds 2" of length. Deduct 2" from the panel length.

    Grommet Drapery

    1. Measure from the top of the rod to the desired bottom length.
    2. The final panel measurement will be from the upper inside of the grommet to the bottom of the panel.
    3. Provide the finished panel length rounded to the nearest 1/8" — this will be the exact measurement your drapery panel is made to.
