To find the mounting requirements for your product, check out the 'Specifications' tab on the product page.

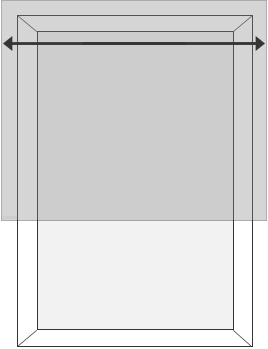

Measuring the Width
- When measuring the window’s width, take the measurement at the top of the window frame.
- You’ll use that measurement and add the recommended minimum of 4 inches. This will ensure the window is properly covered.
- Now you have the perfect width and you’re ready to order.
Measuring the Height
- When measuring the window’s height, take it from three locations: the left, center, and the right.
- You’ll use the largest of the three measurements and add the recommended minimum of 4 inches. This will ensure the window is properly covered.
- Now you have the perfect height and you’re ready to order.
Please review the deduction chart below that we’ll use when making your order. You do not need to take any additional deductions.
| Solar Shades | Minimum Surface Required | Total Deductions |
| Classic Sheer Weave | 2" | Up to 1 1/4" off of Fabric |
| Motorized Sheer Weave | 1 3/8" | 1 1/4" off of Fabric |
| Neutral | 2" | Up to 1 1/4" off of Fabric |
| Designer Series | 1 1/2" | Up to 1 3/4" off of Fabric |
| Premier Modern/Nomad | 2 1/4" | 1 3/8" off of Fabric |
| Traditional/Timeless | 1 3/4" Exposed if under 58" X 66" 2 1/2" Exposed if over 58" X 66" 2 3/4" Cassette |
1 3/8" off of Fabric |
| Woven/Modern Woven | 1 3/8" Cassette 1 1/2" Cordless Lift/Auto-Up Lift 2" Motorization |
1 1/2" off of Fabric |
| Lifestyle/Sleek | 2 3/8" | 1 3/8" off of Fabric |
| LEVOLOR | 1 1/8" | 1/8" off of Headrail 1 1/2" off of Fabric |
| Modern Luxury | 1 /2" | 1 3/8" off of Fabric |
| Prestige/Eclectic Luxe/Elite | 1 5/8" Exposed Roll 3 1/8" Cassette with Fabric Insert 4" Fabric Wrapped Cassette |
No Deductions |
