Make sure your window has enough depth for an inside mount. For more details on the specific requirements, head over to the product’s information page and click on the "Specifications" tab.
Measuring the Width

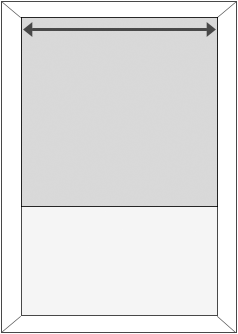

- The width measurement is taken from the inside edge of the window frame at the top.
- If you are getting a 1/16” or 1/32” increment, round down to the nearest 1/8”. (For example, if the smallest measurement is 24 9/16", round down to 24 1/2". If it's 24 3/8", no need to round down.)
- This will be the width you order.
Measuring the Height
- The height measurement is taken from the window frame in three places (top left, center, and top right down to the window sill).
- Record the largest height out of the three measurements up to the nearest 1/8”.
- If you are getting a 1/16” or 1/32” increment, round up to the nearest 1/8”. (For example, if the largest measurement is 24 9/16", round up to 24 5/8". If it's 24 1/2", no need to round up.)
- This will be the height you order.
Please review the deduction chart below that we’ll use when making your order. You do not need to take any additional deductions.
Roller Shades | Minimum Required Depth | Minimum Required Flush Depth | Total Deduction |
Classic | 2 1/4" Exposed Roll 2 5/8" Cassette |
3" Exposed Roll 3 1/4" Cassette |
1/8" off of Exposed Roller 1/4" off of Cassette 1 1/2" off of Fabric |
Timeless | 2 1/4" Exposed Roll 2 5/8" Cassette |
3" Exposed Roll 3 1/4" Cassette |
1/8" off of Exposed Roller 1/4" off of Cassette 1 1/2" off of Fabric |
Traditional | 2 1/4" Exposed Roll 2 5/8" Cassette |
3" Exposed Roll 3 1/4" Cassette |
1/8" off of Exposed Roller 1/4" off of Cassette 1 1/2" off of Fabric |
Select | 2 1/4" Exposed Roll 2 5/8" Cassette |
3" Exposed Roll 3 1/4" Cassette |
1/8" Off of Exposed Roller 1 1/4" off of Exposed Fabric 1/4" off of Cassette 1 1/2" off of Cassette Fabric |
Essence | 2 1/4" Exposed Roll 2 5/8" Cassette |
3" Exposed Roll 3 1/4" Cassette |
1/8" Off of Exposed Roller 1 1/4" off of Exposed Fabric 1/4" off of Cassette 1 1/2" off of Cassette Fabric |
Sheerweave | 2 1/4" Exposed Roll 2 5/8" Cassette |
3" Exposed Roll 3 1/4" Cassette |
1/8" off of Exposed Roller 1/4" off of Cassette 1 1/2" off of Fabric |
Premier | 1 3/8" Exposed Roll 1 1/4" Cassette 1 3/4" Premium Cordless |
2 3/4" Exposed Roll 3 3/8" Cassette 4" Premium Cordless |
1/8" off of Exposed Roller 1/4" off of Cassette Please see Product info for Fabric Deductions |
Minimalist | 1 3/8" Exposed Roll 1 1/4" Cassette 1 3/4" Premium Cordless |
2 3/4" Exposed Roll 3 3/8" Cassette 4" Premium Cordless |
1/8" off of Exposed Roller 1/4" off of Cassette Please see Product info for Fabric Deductions |
Refined/Urban | 2 1/2" Exposed Roll 4" Aluminum Fascia 2" Cassette with Fabric Insert |
3 3/8" Exposed Roll 4 3/8" Aluminum Fascia 4 1/4" Cassette with Fabric Insert |
1/8" off of Headrail 1 1/2" off of Fabric |
Architect/Modern Architect | 2 1/2" Exposed Roll 4" Aluminum Fascia 2" Cassette with Fabric Insert |
3 3/8" Exposed Roll 4 3/8" Aluminum Fascia 4 1/4" Cassette with Fabric Insert |
1/8" off of Headrail 1 1/2" off of Fabric |
Double Roller and Double Solar Roller Shades | 2 1/2" Exposed Roll 5" Aluminum Fascia |
3 3/4" Exposed Roll 5 3/8" Aluminum Fascia |
1/8" off of Headrail 1 1/2" off of Fabric |
Precision Dual Roller/Precision Dual Solar Roller Shades | 2 1/2" Exposed Roll 5" Aluminum Fascia |
3 3/4" Exposed Roll 5 3/8" Aluminum Fascia |
1/8" off of Headrail 1 1/2" off of Fabric |
Lifestyle | 1 5/8" All Lift Styles 2 1/2" All Lift Styles with Fascia |
3" All Lift Styles 3 5/8" All Lift Styles with Fascia |
1/8" off of Headrail 1 1/2" off of Fabric - Cordless 1 3/8" off of Fabric - Motorization with Remote |
Sleek | 1 5/8" All Lift Styles 2 1/2" All Lift Styles with Fascia |
3" All Lift Styles 3 5/8" All Lift Styles with Fascia |
1/8" off of Headrail 1 1/2" off of Fabric - Cordless 1 3/8" off of Fabric - Motorization with Remote |
Wild Wonderland/Whimsical Wonderland | 2 1/8" Cordless 1 1/4" Motorized Cassette 2" Motorized Exposed Roll |
4 1/8" Cordless 3 1/4" Motorized Cassette 2 1/4" Motorized Exposed Roll |
1 1/8" Exposed Roll 1 1/2" Motorized Exposed Roll 1 7/8" Motorized Cassette |
Little Adventurer/Little Dreamer | 2 1/8" Cordless 1 1/4" Motorized Cassette 2" Motorized Exposed Roll |
4 1/8" Cordless 3 1/4" Motorized Cassette 2 1/4" Motorized Exposed Roll |
1 1/8" Exposed Roll 1 1/2" Motorized Exposed Roll 1 7/8" Motorized Cassette |
William Morris | 2 1/8" Cordless 1 1/4" Motorized |
4 1/8" Cordless 3 1/4" Motorized |
1 1/8" off of Cordless 1 1/2" off of Motorized |
V&A Printed | 2 1/8" Cordless 1 1/4" Motorized |
4 1/8" Cordless 3 1/4" Motorized |
1 1/8" off of Cordless 1 1/2" off of Motorized |
Contemporary/Nordic Woven | 2 1/8" Cordless 2 3/16" Motorized |
4 1/8" Cordless 3 3/4" Motorized |
1 1/8" off of Cordless 1 3/4" off of Motorized |
Modern/Lifestyle Woven | 2 1/8" Cordless 2 3/16" Motorized |
4 1/8" Cordless 3 3/4" Motorized |
1 1/8" off of Cordless 1 3/4" off of Motorized |
LEVOLOR | 1 1/2" All Lift Systems - Exposed Roll 1 1/2" All Lift Systems - Standard Fabric Valance 2 1/8" All Lift Systems - Cassette Valance |
2 1/2" All Lift Systems - Exposed Roll 3 1/4" All Lift Systems - Standard Fabric Valance 3 5/8" All Lift Systems - Cassette Valance |
1/4" off of all lifts
1 1/4" off of Fabric - Cordless/Cassette Valance |
Modern Textured | 2" Cordless 3 1/4" Motorized 3 1/4" Continuous Cord Loop |
2" Cordless 3 1/2" Motorized 3 1/2" Continuous Cord Loop |
7/8" Cordless Lift 1 3/8" Continuous Cord Loop/Motorized |
LEVOLOR x Select | 2 1/8" | 4 1/8" Cordless 3 3/4" Motorized 3 3/4" Continuous Cord Loop |
7/8" Cordless Lift 1 3/8" Continuous Cord Loop/Motorized |
Modern Luxury | 2 1/4" Motorized 2 1/4" Continuous Cord Loop 2 1/8" Cordless |
3 1/4" Motorized 3 1/4" Continuous Cord Loop 4 1/8" Cordless |
1 1/8" Cordless Lift 1 1/2" Continuous Cord Loop/Motorized |
Bespoke | 1 3/8" Exposed Roll 1 1/2" Cassette with Fabric Insert 1 1/2" Fabric Wrapped Cassette |
2 1/8" Exposed Roll 3 3/4" Cassette with Fabric Insert 3 3/4" Fabric Wrapped Cassette |
Exposed Roll: 1 1/8" Cordless Lift 1 3/16" Continuous Cord Loop 1 5/16" Motorization Cassette with Fabric Insert: 1 1/8" Cordless Lift 1 5/16" Continuous Cord Loop 1 7/16" Motorization Fabric Wrapped Cassette: 1 3/16" Cordless Lift 1 5/16" Continuous Cord Loop 1 7/16" Motorization |
